Reference Alpha 2
High End Standlautsprecher
- High-end speakers
- Diamond midrange and tweeter system
- 820 watts
- 46 x 163 x 72 cm (W x H x D)
Item no.: 04502
A milestone in development
The Reference Alpha 2 is the result of an intensive development phase with the clear aim of creating the ultimate Reference loudspeaker. As the new flagship of the iconic Canton Reference series, it embodies the highest high-end sound quality, technical brilliance and uncompromising attention to detail. The impressive loudspeaker was designed and developed with great passion - from the careful choice of materials for the cabinet to the perfect surface design. The focus was on the further development of precision, dynamics and fidelity in order to set new sound standards. All of the expertise from over 50 years of company history went into this project and resulted in a loudspeaker that is unique both in its technical complexity and in its acoustic perfection. The Reference Alpha 2 redefines the highest standards - a masterpiece of the art of sound.
41 x 142 x 66 cm (W x H x D)
820 watts music load capacity
91 Kilogramm
Iconic sound for the highest quality standards
Diamond ceramic midrange and tweeter system
Imposing enclosure shape for impressive listening pleasure

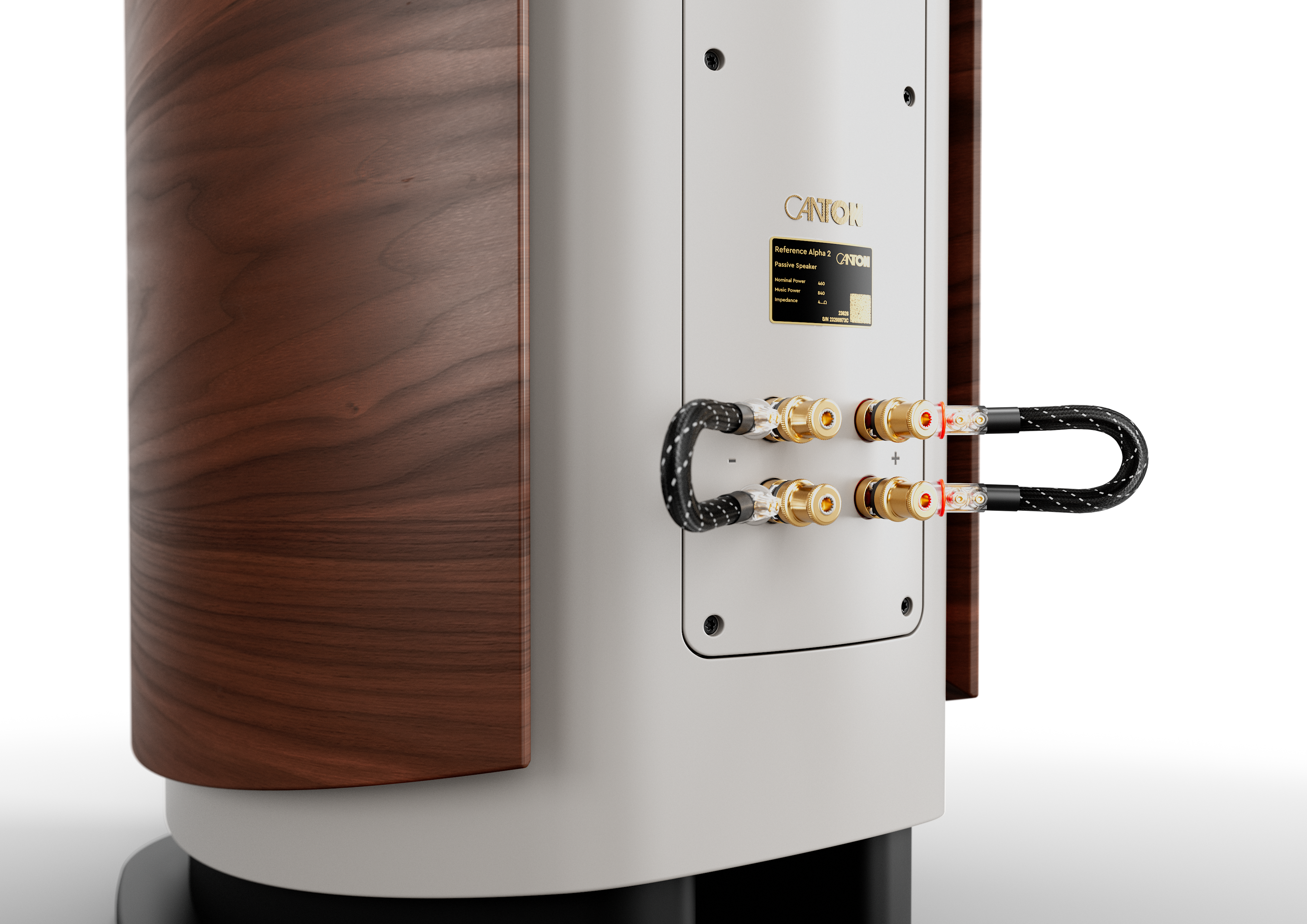

WBT connection terminals for optimum signal connection
Acoustically neutral cover with magnetic attachment
10-year guarantee on Reference passive loudspeakers
Sound art at the highest level
The Reference Alpha's innovative technologies and high-quality materials make it another milestone. The BCT cones used for the first time in the Reference series can also be found in the new Reference Alpha. The new midrange system has been coated with an additional diamond coating. This gives the chassis even more rigidity and precision - for a neutral, dynamic and lifelike sound. This is complemented by the Wave surround 3.0 technology, which, thanks to its three surround bends, guarantees even vibration and symmetrical power distribution even at high volumes. The perfectly matched components ensure controlled performance and maximum sound quality.
Sound quality starts with the enclosure
The Reference Alpha 2 impresses with a majestic design language that combines elegance and power. As the measure of all things, it combines grace and design in an impressive way. Its over 140 cm high silhouette radiates presence, while the interplay of flawless lacquer and walnut wood creates a timeless, elegant design. Despite their imposing dimensions, the speakers appear light and graceful thanks to their sleek lines and harmonious proportions. The handcrafted finish reflects the highest level of precision, and every detail - from the surface finish to the curved front shape - underlines the demand for perfection. The Reference Alpha are acoustic and visual masterpieces that are made to last.

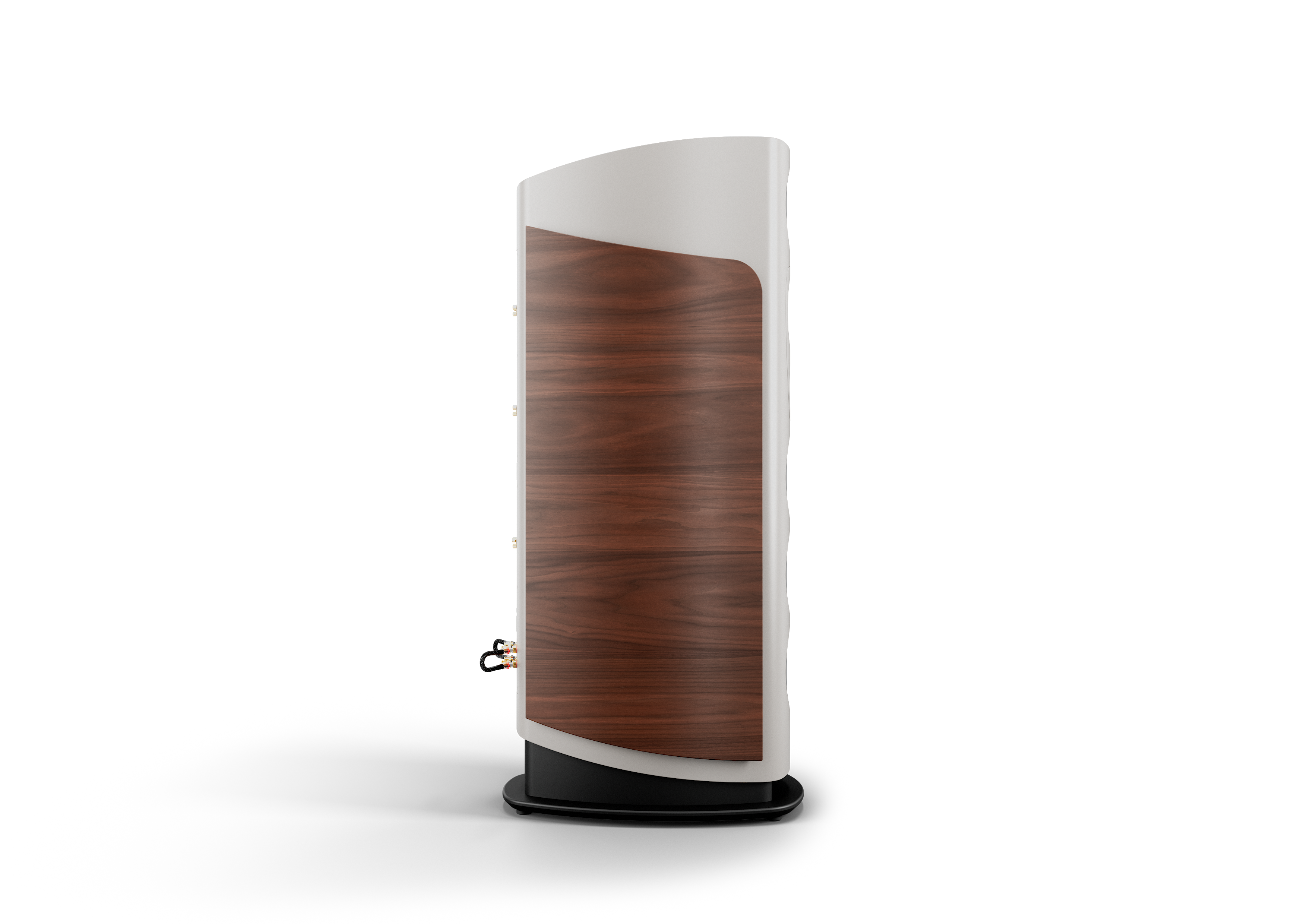

Harmony of design and wood craftsmanship

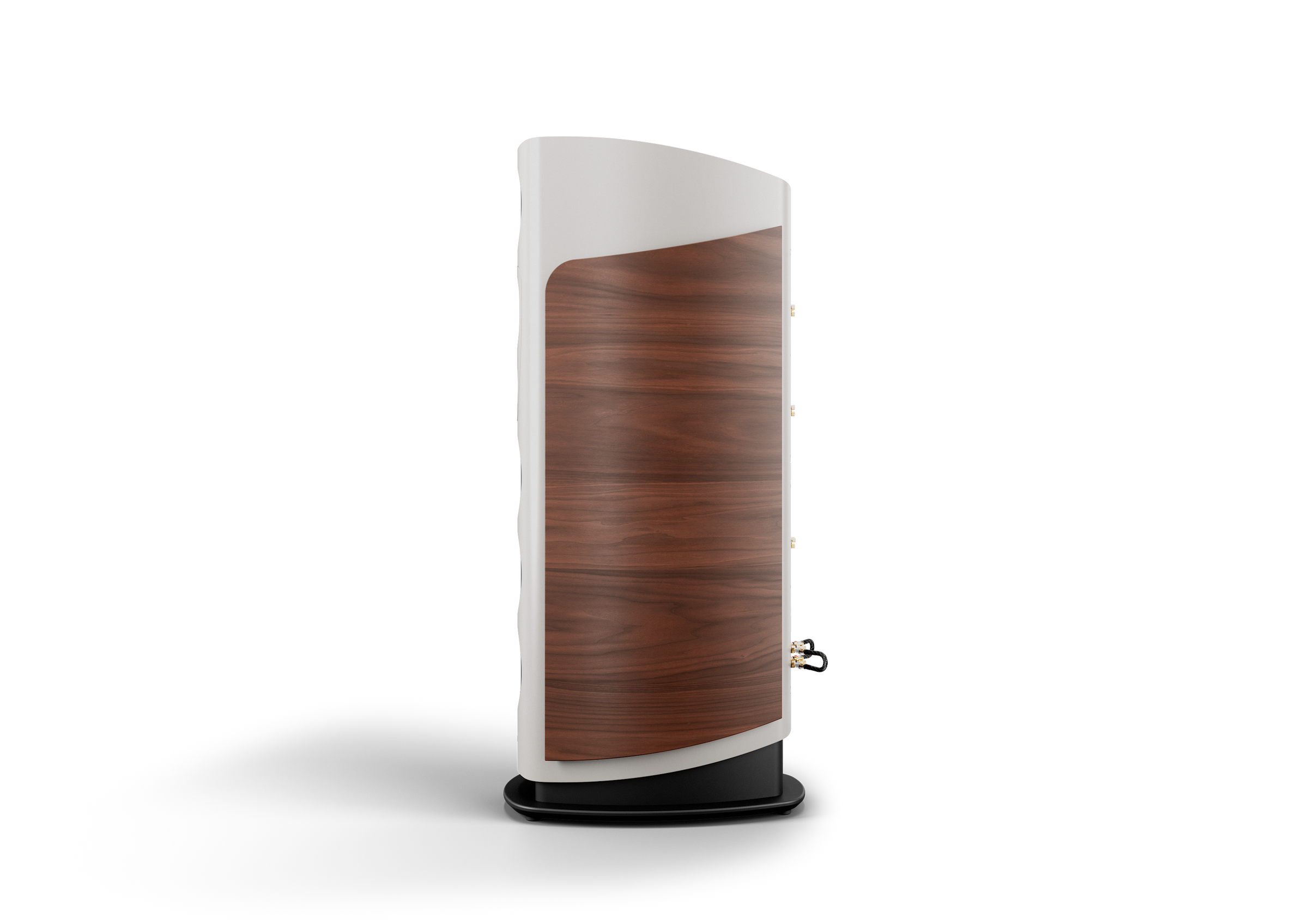

The elegant, curved design of the Reference Alpha combines aesthetics and function. The curved side panels, made of multi-layered wood, offer exceptional stability and exceptional stability and minimize resonance. Refined with the high-quality mix of materials, they blend harmoniously into the overall concept. The acoustically optimized curves prevent edge reflections and give the speaker its impressive its imposing yet timeless appearance.
Elaborate internal reinforcement
The Reference Alpha impresses with an enclosure that perfectly combines sound and design. In order to control the enormous forces inside the Reference Alpha loudspeakers, the internal construction has been enormously reinforced by a special cabinet design. The careful selection of the front shape, additional anti-parallel reflector units with precisely defined damping made of special fleece, prevents standing waves inside the cabinet. .

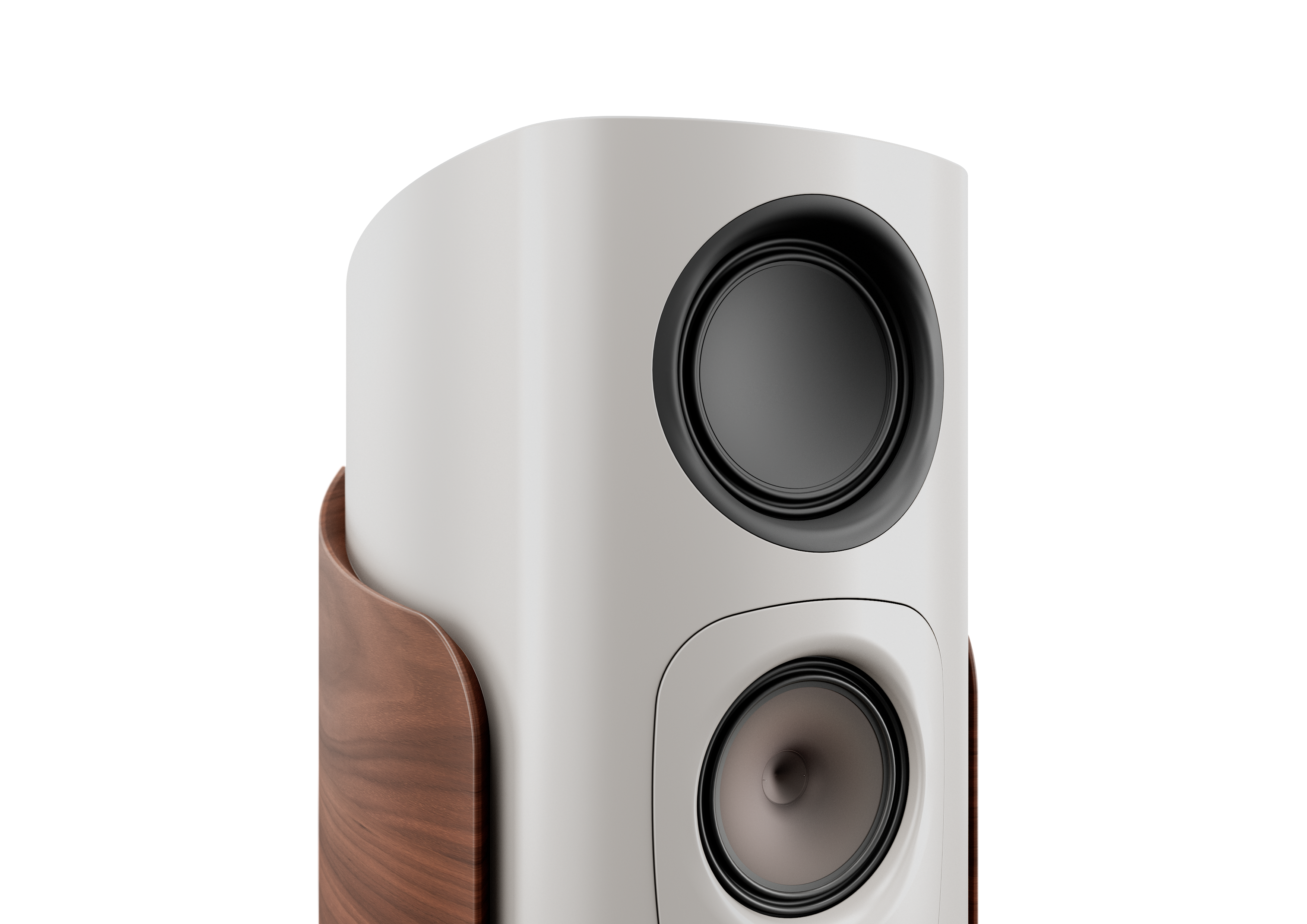

Diamond midrange system
A special highlight is the extremely elaborate diamond coating of the ultra-modern midrange system. It ensures maximum stability and reduces sound coloration. Voices and instruments are reproduced with the utmost precision and naturalness. Technically, the midrange system is based on the innovative BCT cones, which impress with their unique material composition. The basis is provided by an aluminum cone, 25% of which is converted into ceramic, reinforced with tungsten particles and coated with an additional layer of diamonds. The new midrange system also has a triple-curved cone that ensures optimum rigidity. The ultra-light, phase-optimized “point source” inverse dome tweeter used for the first time enables particularly precise sound dispersion and an outstanding spatial representation of the sound image.

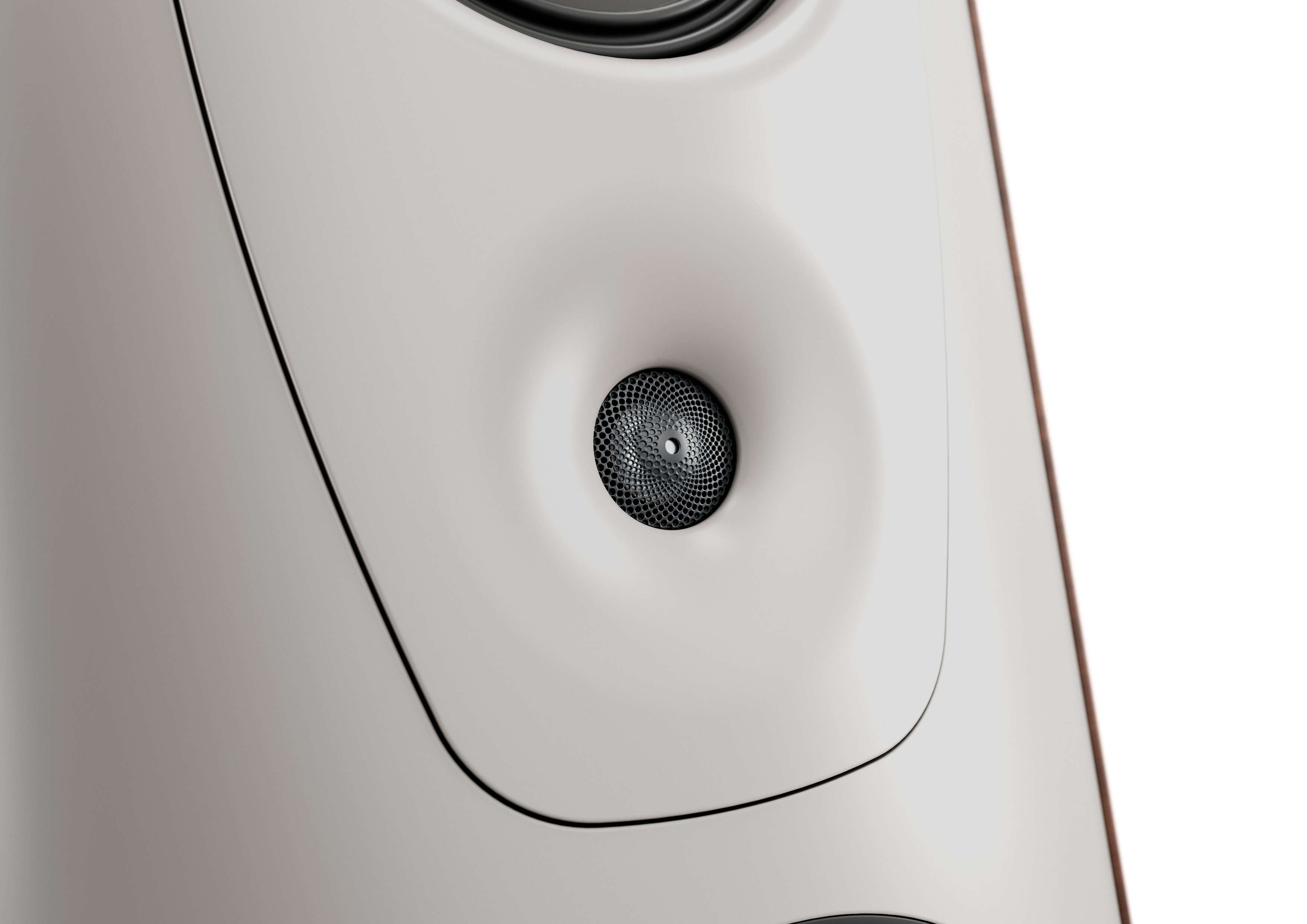

Diamond tweeter system
The Reference Alpha series tweeter system impresses with its DCC dome tweeter, which has a special diamond coating. This ensures exceptional rigidity and optimizes the vibration behaviour. In combination with the asymmetrical waveguide and the new computer-simulated grille design, the dispersion characteristics are optimized, especially in the crossover and high frequency range above 15,000 Hz. The result: crystal-clear highs, in which the finest details and nuances of the music become audible.
1. Magnet: By specifically optimizing the power and structure of the magnetic drive with a pole core bore, the coil (2) is embedded in a balanced inductive field.
3. Centering Spider: An optimized centering spider with a precisely defined number of folds forms the connection between the voice coil carrier and the basket.
4. Speaker Basket: Glass fiber-reinforced polycarbonate baskets combine remarkable lightness with high stability, making them an optimal choice for a wide range of applications.
5. TCC Cone Membrane: The midrange systems of the new Reference Alpha use shape-optimized diaphragms with three different radii.
6. Wave Surround: The suspension of the moving system, designed as a wave surround, enables enormous excursion movements and precisely controls the transient response.
7. Dust Cap: The dust cap seals the moving system and optimally dissipates the heat generated by the coil.
8. Cover Ring: The amorphously shaped front ring made of low-resonance POM material serves as an asymmetric waveguide and additionally increases the mechanical stability of the moving system.
Optimized down to the last component

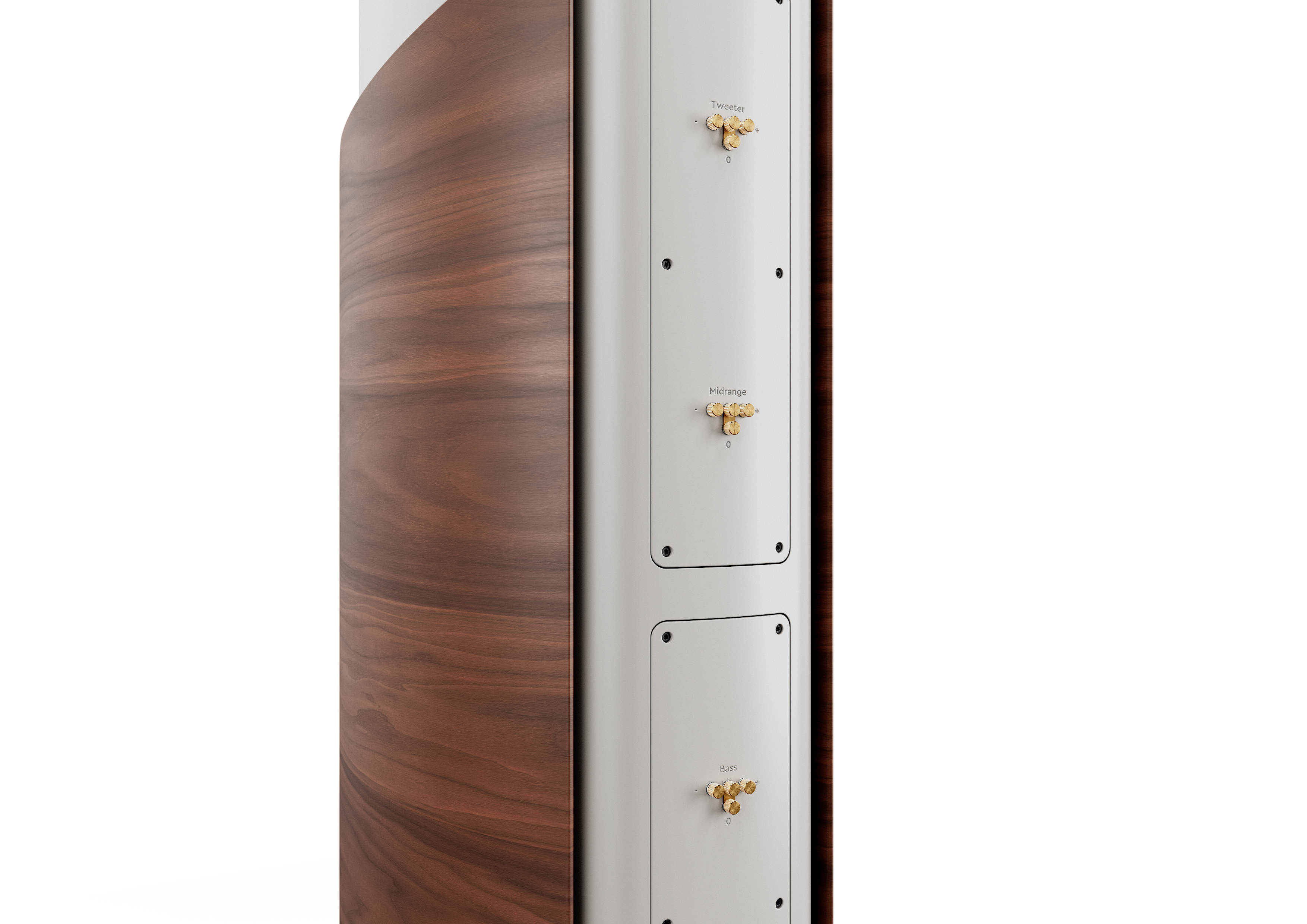

Room Compensation
Thanks to innovative room compensation technology with integrated tweeter, midrange and bass adjustments, the levels of the new Reference Alpha can be adapted to the room acoustics and individual listening tastes. This function allows the sound pressure levels of the mid-range and tweeters to be finely adjusted in 1.5 decibel increments. In addition, the bass range can be adjusted in 1.5 decibel steps to adapt the speakers to the room acoustics and to suit personal sound preferences. For an all-round harmonious look, the connection panels are painted in the same stylish colors as the speaker enclosures.
Optimum signal separation
The crossovers of the Reference Alpha are equipped with high-precision, high-end components from Mundorf, which ensure precise signal distribution and optimum sound quality. Thanks to Displacement Control Technology, uncontrolled excursion of the woofers is avoided, effectively minimizing distortion and making optimum use of the bandwidth. Even at high volumes, the reproduction remains precise and detailed, with powerful, controlled bass and clearly defined highs. As the central control unit of the speaker system, the high-quality crossovers ensure perfect coordination between the drivers, resulting in a harmonious and balanced sound performance that reproduces every musical detail authentically and naturally.
High-end internal cabling
The carefully thought-out cable routes inside the enclosures have been reduced to an absolute minimum to ensure the most efficient signal transmission possible. Only the CantoLink 600 K cables specially manufactured for Canton by the renowned German manufacturer in-akustik are used. These are characterized by their high-quality construction, which includes a special core and six precisely twisted individual conductors. This high-end construction ensures optimum sound transmission - from the connection terminal to the chassis, so that sound nuances can be reproduced without distortion.
From copper to diamond: sound in every facet
Form, function and performance
High-quality connections and the advanced RC technology for tweeter, midrange and bass allow perfect adaptation to the room acoustics and individual listening tastes. The solid wooden cabinet with its elegant real wood veneer not only offers stability, but also an uncompromising design. The interplay of the powerful and high-quality Reference Alpha components results in precise, detailed sound that meets even the highest demands.
The technology enables the sound
The sophisticated internal construction of the Reference Alpha prevents unwanted resonances. Special damping materials and precise and elaborate internal chambers reduce unwanted vibrations and give the sound a warm, clear note. The crossover ensures precise signal distribution, allowing all components to interact harmoniously and creating an authentic sound experience.
Reference Alpha
The Reference Alpha represents the pinnacle of what high-end floorstanding speakers can offer. It combines timeless design, advanced acoustic technologies, and precise craftsmanship to deliver an unparalleled listening experience for music enthusiasts. Featuring innovative materials and a perfectly tuned cabinet, the Reference Alpha sets new benchmarks in the world of audio technology.
1. Innovative Technologies for Detailed Sound
Equipped with state-of-the-art audio technology such as BCT membranes (Black Ceramic Tungsten) and the diamond-coated DCC dome (Diamond Coated Cone), the Reference Alpha delivers exceptional sound fidelity. The Wave Surround 3.0 enables precise driver movement, ensuring clear mids, crisp highs, and powerful bass. These high-end technologies make the speakers the ideal choice for audiophiles who value precision and detail in their sound.
2. Perfect Combination of Design and Acoustics
The elegantly curved cabinets of the Reference Alpha are not only a visual highlight but also minimize resonances thanks to their multi-layered wood laminate construction. With its premium real wood veneer and high-quality lacquer finish, the floorstanding speakers integrate seamlessly into any interior. The design blends aesthetics and function to create a high-end product that impresses both visually and acoustically.
3. Room Optimization for Perfect Sound Results
Featuring integrated Room Compensation (RC) technology, the Reference Alpha adapts to any room acoustics. Highs and mids can be adjusted in precise 1.5 dB increments, ensuring optimal sound reproduction in both large and small rooms. This flexibility makes the speakers the perfect choice for discerning listeners who expect a well-balanced soundstage in any environment.
4. Precision and Craftsmanship
The Reference Alpha is manufactured with the highest precision using 5-axis CNC milling and refined through meticulous handcrafting. The use of fiberglass-reinforced polycarbonate in the speaker baskets, resonance-optimized POM front rings, and high-purity WBT binding posts ensures durability and sound fidelity. Every detail has been engineered to maximize sound quality and deliver uncompromising performance.
5. Sound Spectrum for the Highest Demands
The Reference Alpha impresses with a broad sound spectrum, ranging from delicate highs and precise mids to powerful lows. Its dynamic, well-defined bass and detailed treble reproduction make it the perfect choice for demanding music lovers. Thanks to innovative crossover technology, distortions are minimized, and the balance between the drivers is optimized, allowing music to be experienced in its full range and emotion.
Experience the perfection of modern floorstanding speaker technology with the Reference Alpha. Whether for classical music, jazz, rock, or home theater – these speakers set new standards in the world of high-end audio products.
