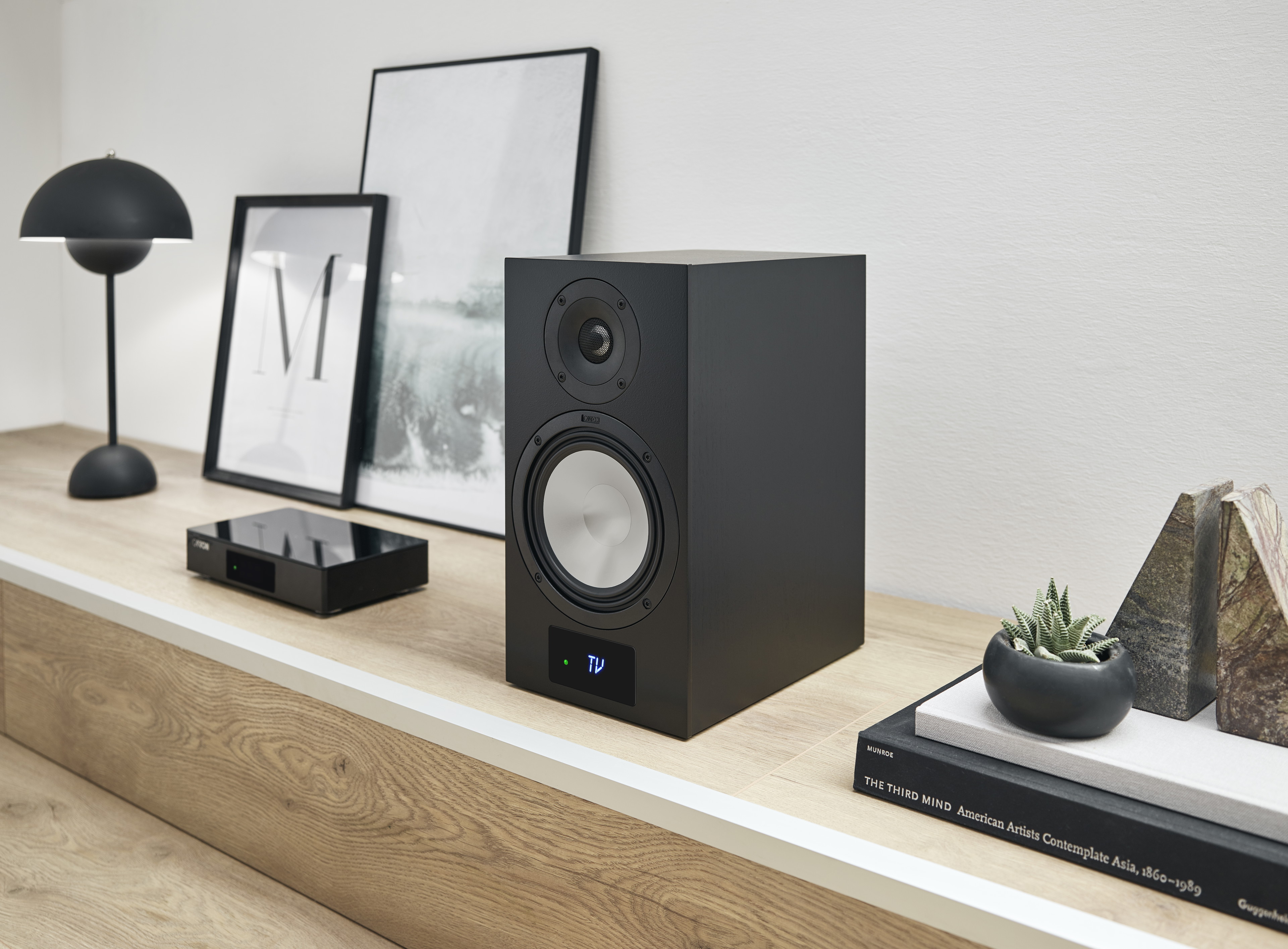

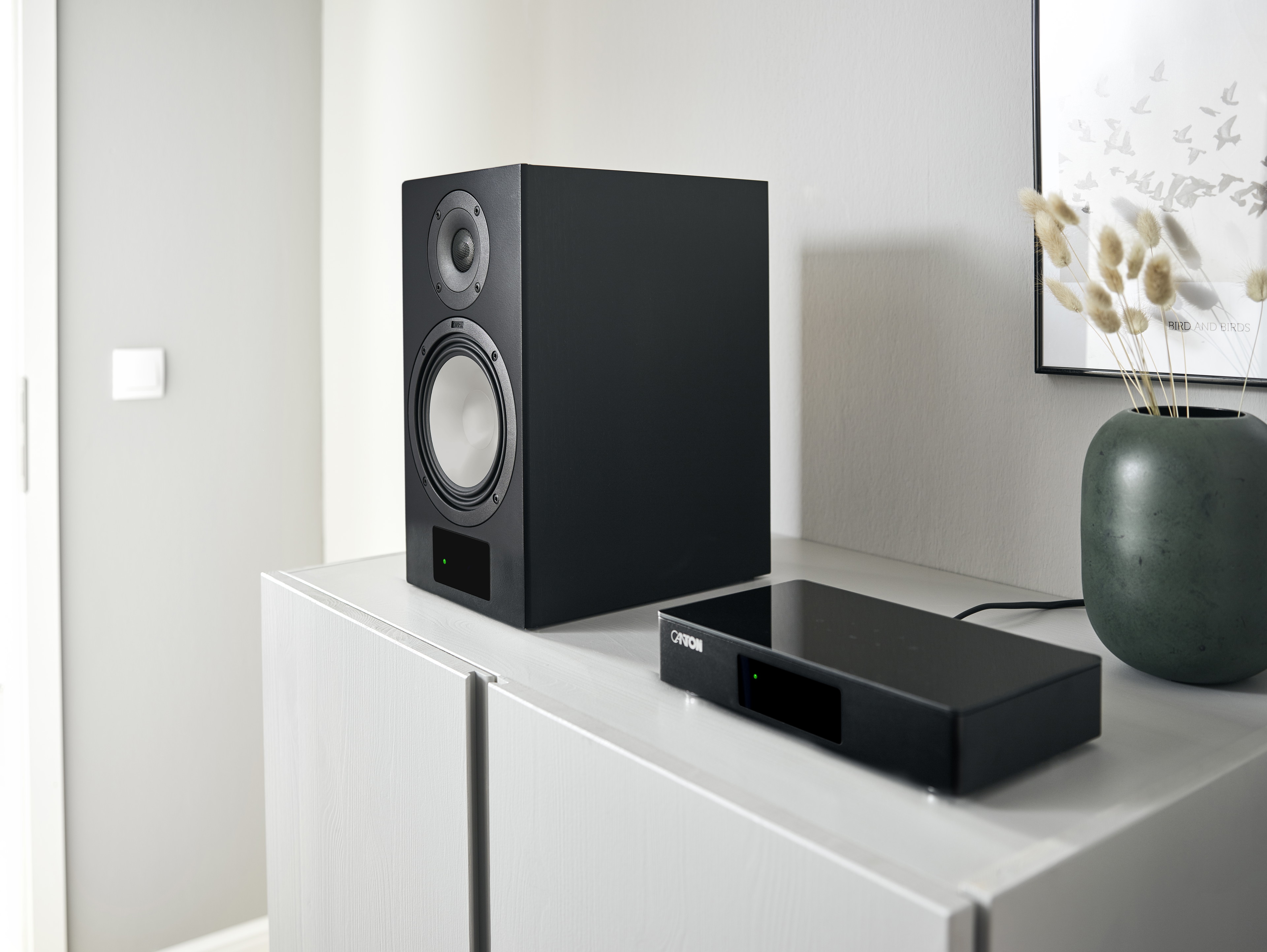

Smart GLE 3 S2
Aktiv-Wireless Kompaktlautsprecher
- Smart wireless technology
- Dolby Audio & DTS Digital Surround
- Aluminium mid & bass system
- Bluetooth
Item no.: 04244
Packender TV- und Musikklang mit Dolby Audio
Mini-Display und Remote Control für direkte Steuerung
Flexibel erweiterbar mit Smart Lautsprechern und Subwoofer
Hochwertig gefertigt nach Canton Qualitätsanspruch
Vielfache Einstellungsmöglichkeiten über integriertes Menü
Geeignet für viele Einsatzzwecke
Smart GLE 3 S2 Technical specifications
Smart GLE 3 S2
Item no.: 04244
Shipping:
Package
Carton contents:
1 x Smart GLE 3 S2 (Master)
1 x Smart GLE 3 S2 (Slave)
Remote control
Power cable
Optical digital audio cable (1.5m)
Coaxial digital audio cable (1.5m)
Analog stereo audio cable (1.5m)
Instruction manual
weight:
7,5 kg kg
Packing dimensions:
58 x 38 x 49 cm cm
Packing weight:
18 kg
Dimensions (WxHxD):
19 x 36 x 28 cm cm
Acoustic principle:
2-way bass reflex
Principle passive resonator:
Bass reflex
Radiation direction resonator:
Backfire
Tweeter quantity:
1
Tweeter size:
25 mm
Tweeter material:
Aluminium-manganese (Wave surround)
Woofer/Midrange driver quantity:
1
Woofer/Midrange driver size:
174
mm
Woofer/Midrange driver material:
Titanium (Wave surround)
Transmission range:
28...30.000 Hz
Hz
Crossover frequencies:
3.000 Hz
Hz
System performance:
350 Watt pro Lautsprecher
Hz
Standby power consumption ECO/NSB/AUT/MAN:
0,35 / 1,2 /.../ 0,35
watts
Extended data
Connections:
1 x Analogue input (chinch)
1 x Bluetooth® 3.0 Interface (apt-X® Decoding for transmission in CD quality)
1 x Digital Input (coaxial)
1 x Digital Input (optical)
1 x USB-Input with XMOS® technology
1 x XLR (Balanced)
Advanced connection information
Bluetooth® Standard:
3.0
Bluetooth® profile:
A2DP 1.2, AVRCP 1.3
Supported codecs:
apt-X/ SBC
S/PDIF input (coaxial):
1 x Cinch 24 Bit/96kHz
S/PDIF input (optical):
1 x TOSLink 24 Bit/96kHz
USB input:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS
Balanced (symmetrical):
1x Mono 2V effektiv XLR
S/PDIF OUT (coaxial):
1 x Cinch 24 Bit/96kHz
Subwoofer output:
1x Cinch Mono 2V effektive/No
Wireless network for connecting additional Smart Loudspeakers (Cantonet):
5 GHz / 2 Audio-Kanäle 24Bit/96kHz / 3-8 Audio-Kanäle 16Bit/48kHz
Dolby Atmos licensed:
no
Woofer Wave surround:
yes
Midrange Wave Bead:
yes
Double Cone:
no
Transmission Front Plate:
no
Bass Guide:
no
Unit socket included:
no
Unit feet:
yes
Height-adjustable unit feet:
no
Preparation spikes:
no
Preparation absorber:
no
Supported sound formats (S/PDIF):
Dolby Audio®, DTS Digital Surround®, PCM 24Bit 96kHz
Virtualizer:
DTS TruSurround
Virtual centre in 4.0 operation:
no
Maximum possible output configuration:
5.1
Preparation for wall mounting:
no
Wall mounting possible:
no
Bass adjustment:
no
Midrange adjustment:
no
Tweeter adjustment:
no
Extended special features
Coaxial loudspeaker:
no
TCC:
no
Suitable for ceiling mounting:
no
Moisture-protected:
no
Volume adjustment per speaker:
yes
Setting the listening level per speaker:
yes
Voice function - for better voice reproduction in stereo & surround:
yes
Equalizer - adaptation to spatial conditions:
yes
Integrated bass management:
yes
Adjustable phase adjustment of the subwoofer:
no
Dynamic Range Control - Setting the dynamic range:
yes
Sleep timer - setting the switch-off time:
yes
IR learning function - controllable with TV / system remote control:
yes
Input-direct selection - ideal for system remote controls:
yes
Input-direct selection - ideal for system remote controls:
yes
Automatic switch on and off:
no
Configuration of the inputs - Input renaming:
yes
LipSync function - for exact speech synchronisation:
yes
System volume - setting the maximum level:
yes
Restore factory settings - Reset function:
yes
Wireless Speaker Pairing - Pairing the wireless speakers:
yes
Bluetooth Select - Selects BT input automatically:
yes
Autoplay function - Automatic Bluetooth® playback:
yes
USB Soundcard use:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS
Fabric cover with magnetic holder:
yes
Sound settings can be saved to presets:
yes
