Smart Soundbar 9 Surround Set
Smart Soundbar 9 Surround Set
Smart Soundbar 9 Surround Set
Zoom

Smart Soundbar 9 Surround Set

Informations
  • Dolby Audio Soundbar
  • Easy Operation
  • Smart Soundbar 9
  • 2 x Smart Soundbox 3

Item no.: 91919

The set contains

Compare
Smart Soundbar 9
Smart Soundbar 9

2.1 Virtual Surround System
Compare

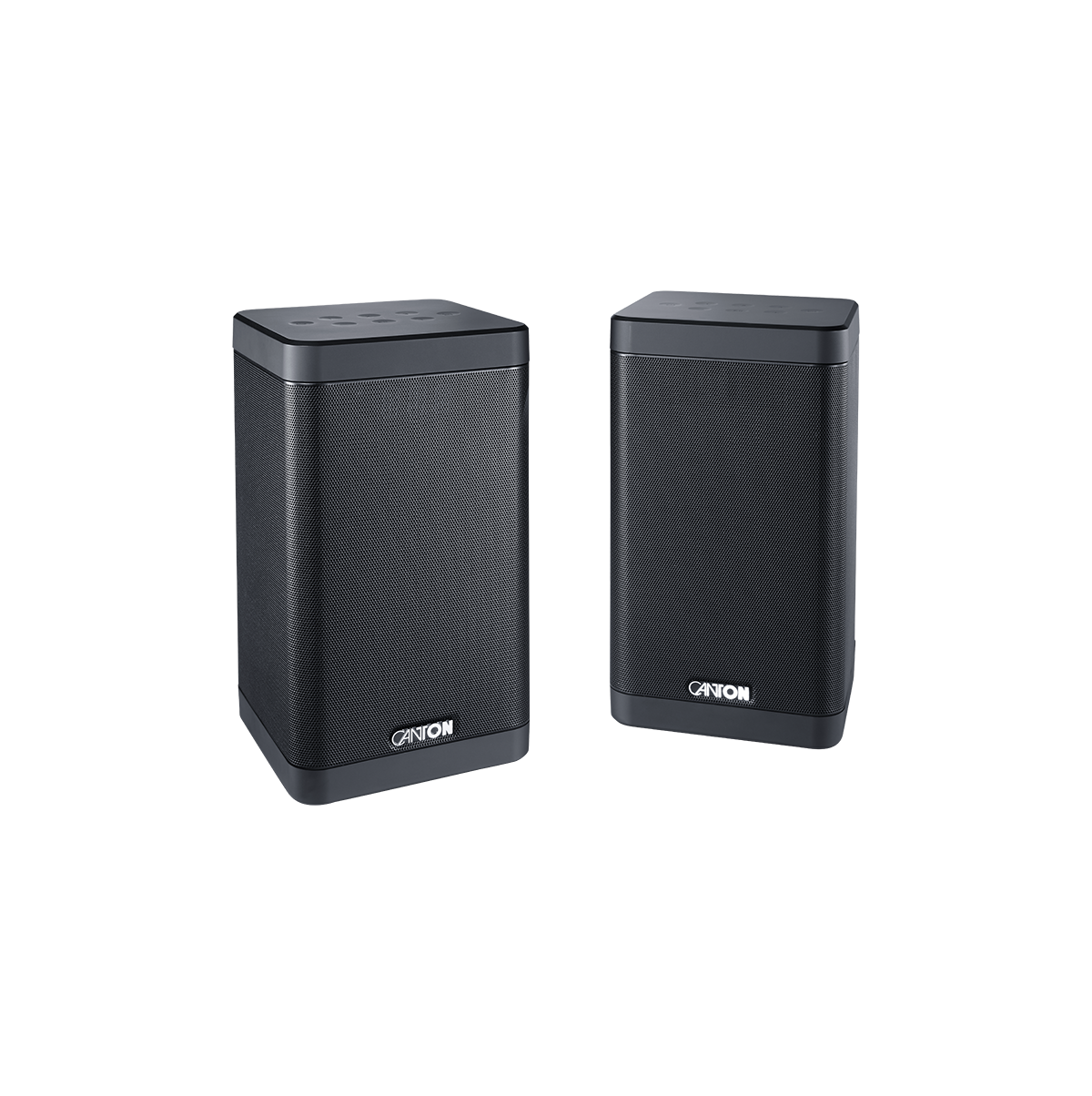

Smart Soundbox 3
Smart Soundbox 3

Smart Speaker

Smart Soundbar 9 Technical specifications

Smart Soundbar 9
Smart Soundbox 3

Smart Soundbar 9

Item no.: 04157

Shipping:
Package

weight:
9.6 kg

Packing dimensions:
18 x 105 x 21 cm

Packing weight:
7,25 kg

Dimensions (WxHxD):
89 x 7 x 10 (35" x 2.8" x 3.9") cm

Acoustic principle:
2-Wege Bassreflexsystem

Principle passive resonator:
Passivmembran

Radiation direction resonator:
Frontfire

Tweeter quantity:
2

Tweeter size:
19 mm

Tweeter material:
Gewebe

Woofer/Midrange driver quantity:
6

Woofer/Midrange driver size:
50 mm

Woofer/Midrange driver material:
Aluminium

Transmission range:
37...30.000 Hz

Crossover frequencies:
3000 Hz

System performance:
300 watts

Extended data

Number of amplifier channels:
4

Amplifier topology:
Class D

Turnout technology:
Vollaktiv

Edge steepness:
24 db

Cabinet material:
MDF

Cabinet surface:
Folie /Lack

Used radio frequencies:
521 = 5180MHz 522 = 5210MHz 523 = 5240MHz 581 = 5736MHz 582 = 5762MHz 583 = 5814MHz mm

RF-bandwidth:
22 MHz

Number of audio channels:
3

Data rates:
max. 24Bit, 192kHz

Max. Transmitting power:
7,9mW (+9dBm)

Advanced connection information

Analogue input (chinch):
1 (Stereo) RCA (Cinch)

Bluetooth® Standard:
Vers. 4.1

Bluetooth® profile:
A2DP 1.2, AVRCP 1.3

Supported codecs:
SBC

HDMI input:
3x Eingang (4K, 3D, HDR, HDCP2.2, CEC)

HDMI output:
1x Ausgang (ARC, 4K, 3D, HDR, HDCP 2.2 CEC)

S/PDIF input (coaxial):
1x S/PDIF RCA (Cinch)

S/PDIF input (optical):
1x S/PDIF TOSLINK

USB:
USB A (Service)

Network:
100 Base- TX/ 10 Base-T (RJ45)

Subwoofer output:
1 (Mono) RCA (Cinch)

Supported sound formats HDMI:
Dolby® Digital, DTS® Digital Surround, PCM (2-8 Kanäle, 8-24Bit, 44,1-96kHz)

Supported sound formats (S/PDIF):
Dolby® Digital, DTS® Digital Surround, PCM (2 Kanäle, 8-24Bit, 44,1-96kHz)

Virtual centre in 4.0 operation:
no

Supported video formats:
640x480/60 Hz 720x480 /60Hz 720x576 /50Hz 800x600 /60Hz 1024x768 /60Hz 1280x720 /50, 60Hz 1280x1024/ 60Hz 1920x1080 /24, 30, 50, 60Hz 1920x1200 /60Hz 3840x2160 /24, 25, 30, 50, 60Hz

HDMI® Standard / Copy Protection:
HDMI® 2.0b / HDCP 2.2

Other HDMI® features:
3D bis 1080p, xvYCC, Deep Colour

Supported HDR:
HDR10

WLAN Standard:
IEEE 802.11 a/b/g/n/ac

available security method:
WEP, WPA2-PSK (AES)

WLAN setup:
Google Home App

Supported streaming protocols:
Chromecast built-in for Audio, Spotify Connect, UPnP,

Supported file formats:
MP3 HE-AAC, LC-AAC,OGG,WAV (LPCM),FLAC

Data rates:
max. 24Bit, 192kHz

WLAN Max. Transmitting power:
63mW (+18dBm)

Dolby Atmos licensed:
no

Virtual Atmos:
no

eingebaute Atmos Lautsprecher:
no

Operation via Canton APP possible:
no

Room calibration via Canton APP:
no

Operation possible on the unit:
no

Sound settings can be saved to presets:
yes

Saving of playlists to presets possible:
yes

Woofer Wave surround:
no

Midrange Wave Bead:
no

Double Cone:
no

Transmission Front Plate:
no

DC switch technology:
no

Bass Guide:
no

Unit socket included:
no

Unit feet:
no

Height-adjustable unit feet:
no

Preparation absorber:
no

Virtualizer:
DTS® TRU Surround

max. Anzahl der koppelbaren Funklautsprecher:
3

Preparation for wall mounting:
no

Bass adjustment:
+-6dB

Midrange adjustment:
+-6dB

Tweeter adjustment:
+-6dB

Extended special features

Coaxial loudspeaker:
no

TCC:
no

Moisture-protected:
no

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Adjustable phase adjustment of the subwoofer:
yes

Dynamic Range Control - Setting the dynamic range:
yes

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Automatic switch on and off:
yes

Configuration of the inputs - Input renaming:
yes

LipSync function - for exact speech synchronisation:
yes

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Bluetooth Select - Selects BT input automatically:
yes

Autoplay function - Automatic Bluetooth® playback:
yes

Fabric cover with magnetic holder:
no

Smart Soundbox 3

Item no.: 04163

Shipping:
Package

weight:
9.6 kg

Packing dimensions:
29 x 16 x 16 cm

Packing weight:
2,4 kg

Dimensions (WxHxD):
12 x 21 x 12 (4.4" x 8.3" x 4.4") cm

Acoustic principle:
2-Way Bass Reflex

Principle passive resonator:
Passive radiator

Radiation direction resonator:
Sidefire

Tweeter quantity:
1

Tweeter size:
19 mm

Tweeter material:
Fabric

Woofer/Midrange driver quantity:
3

Woofer/Midrange driver size:
95 mm

Woofer/Midrange driver material:
Aluminium

Transmission range:
40...30.000 Hz

Crossover frequencies:
3.000 Hz

System performance:
120 watts

Extended data

Advanced connection information

Dolby Atmos licensed:
no

Woofer Wave surround:
no

Midrange Wave Bead:
no

Double Cone:
no

Transmission Front Plate:
no

Bass Guide:
no

Unit socket included:
no

Unit feet:
no

Height-adjustable unit feet:
no

Preparation spikes:
no

Preparation absorber:
no

Virtual centre in 4.0 operation:
no

Preparation for wall mounting:
yes

Wall mounting possible:
no

Bass adjustment:
+-6dB

Midrange adjustment:
+-6dB

Tweeter adjustment:
+-6dB

Extended special features

Coaxial loudspeaker:
no

TCC:
no

Suitable for ceiling mounting:
no

Moisture-protected:
no

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Adjustable phase adjustment of the subwoofer:
yes

Dynamic Range Control - Setting the dynamic range:
no

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Automatic switch on and off:
no

Configuration of the inputs - Input renaming:
no

LipSync function - for exact speech synchronisation:
no

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Bluetooth Select - Selects BT input automatically:
yes

Autoplay function - Automatic Bluetooth® playback:
yes

Fabric cover with magnetic holder:
no

Sound settings can be saved to presets:
yes
