Zoom

Reference 5 GS Edition

High End Floorstanding speaker

White semi-gloss

Informations

3-way bass reflex system
Black Ceramic tungsten technology
370 watts
30 x 102 x 46 cm (W x H x D)

Item no.: 04621

Categories:

Magnetic fabric cover

Ceramic tungsten driver

Gehäusegröße

26 x 46 x 39 cm (B x H x T) inklusive Sockelkonstruktion

Leistung

220 Watt Musikbelastbarkeit

Gewicht

18 Kilogramm

High-End Klang

Ikonischer Klang für höchste Qualitäts-Ansprüche

BCT-Membran

Chassis mit neuer BCT-Membran (Black Ceramic Tungsten)

Gehäuseform

Schwungvolle Gehäuseform für grenzenlosen Hörgenuss

WBT-Nextgen™

WBT Anschlussklemmen für eine optimale Signalverbindung

Stoffabdeckung

Akustisch neutrale Abdeckung mit Magnetbefestigung

Garantie

10 Jahre Garantie auf Reference Passivlautsprecher

More Less

Reference 5 GS Edition

More refinement. More control. More GS.
The GS Edition refines the Reference 5 with three clear upgrades: Newly developed high-frequency system, Revised crossover with Mundorf MKP capacitors and gold-plated WBT nextgen™ connection terminals with bi-wiring and bi-amping options. The result: an audibly more precise, controlled, and maturely tuned reference experience.

The Reference 5 GS Edition combines state-of-the-art chassis technology with consistent fine-tuning in every detail – developed with great attention to detail and the aim of getting even more out of an already excellent floorstanding loudspeaker. Under the direction of company founder Günther Seitz, it has been refined with selected high-end components: The newly developed DLC tweeter system from the Reference Alpha series with diamond-coated DLC dome ensures exceptional transparency and the finest resolution. The high-quality crossover with selected Mundorf MKP components guarantees clean signal separation and maximum fidelity, while the proven Room Compensation technology enables precise adaptation to the room and listening preferences. Gold-plated WBT nextgen™ connection terminals ensure a permanently stable, low-loss connection and also offer the option of bi-wiring and bi-amping – for even more control and sonic superiority. The Reference 5 GS Edition also makes a clear statement visually: the exclusive “Sand” color variant has a warm, modern, and luxurious look – underlining the special appeal of this special edition

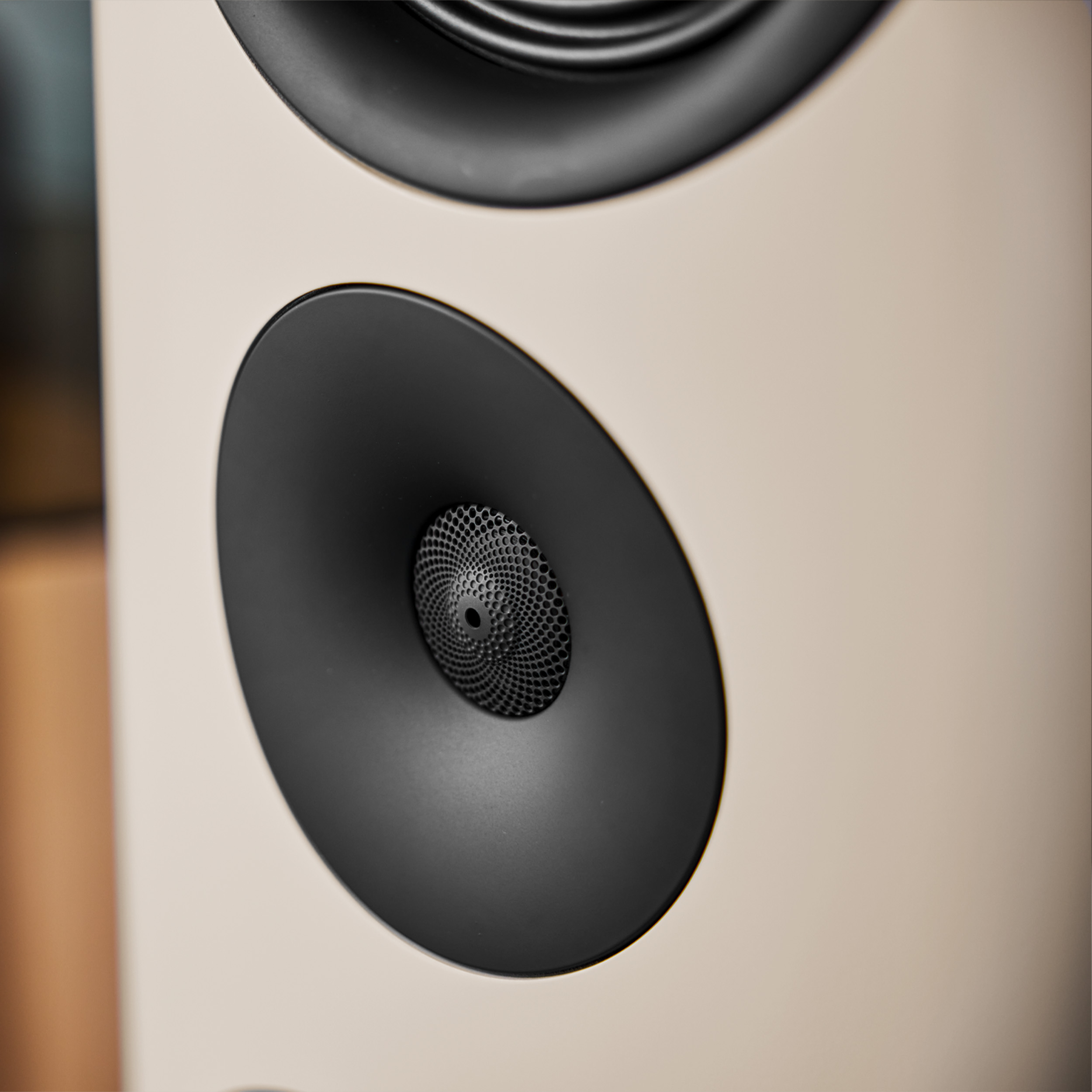

DLC tweeter

The new high-frequency system with diamond-coated DLC dome ensures extremely precise and clear reproduction of high frequencies. The additionally integrated, newly developed sound lens acts as a wave guide and mechanical air cushion. It optimizes efficiency and significantly expands the high-frequency range—for an airy, spacious soundstage and finely resolved details that bring music to life.

High-end crossover

The crossover used in the Reference 5 GS Edition has been completely redesigned and equipped with high-quality MKP capacitors from Mundorf, one of the world's leading manufacturers of audiophile components. These selected components ensure minimal losses and maximum sound fidelity. The result: a balanced, phase-stable sound image with impressive dynamics, authenticity, and fine detail.

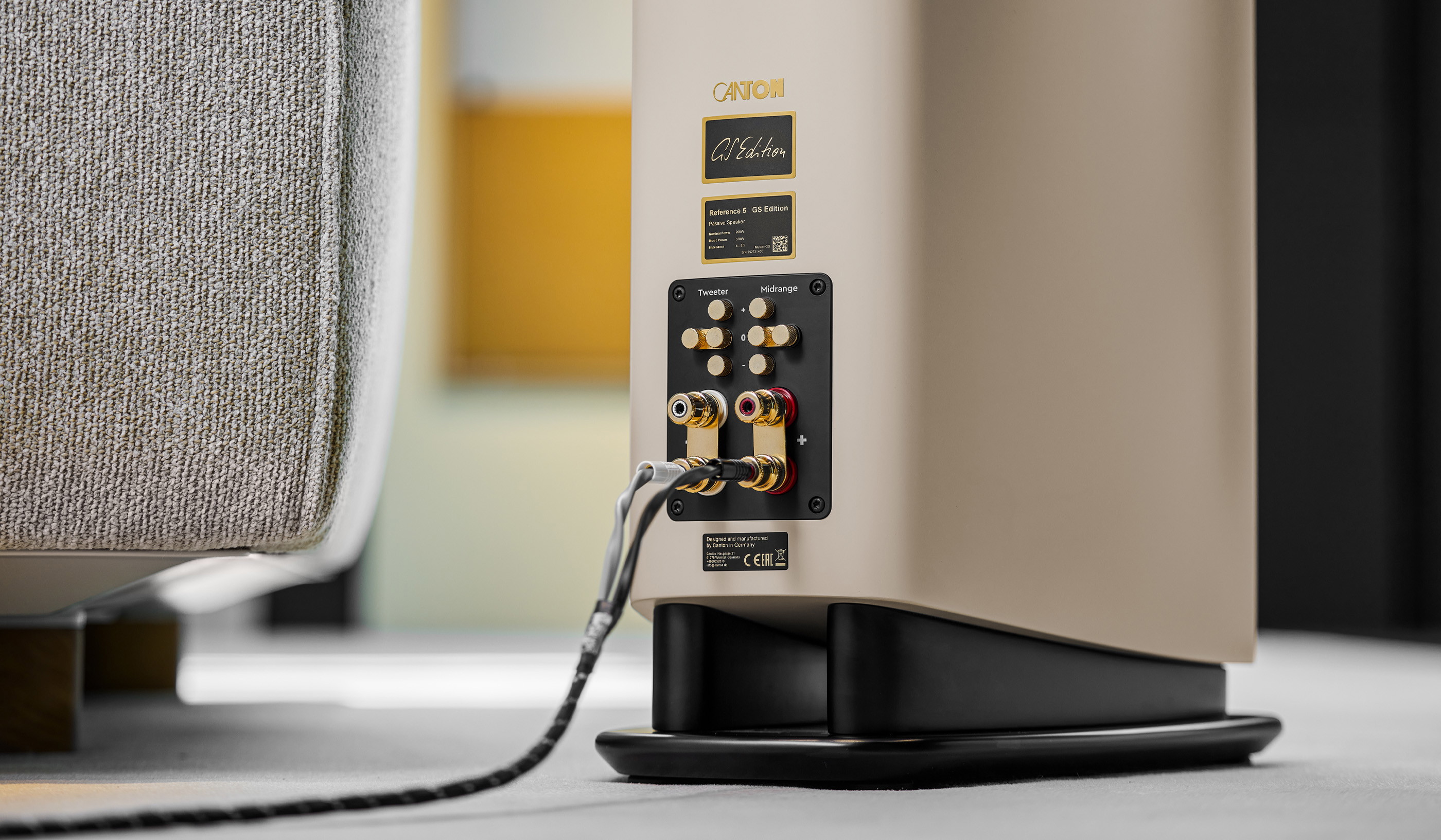

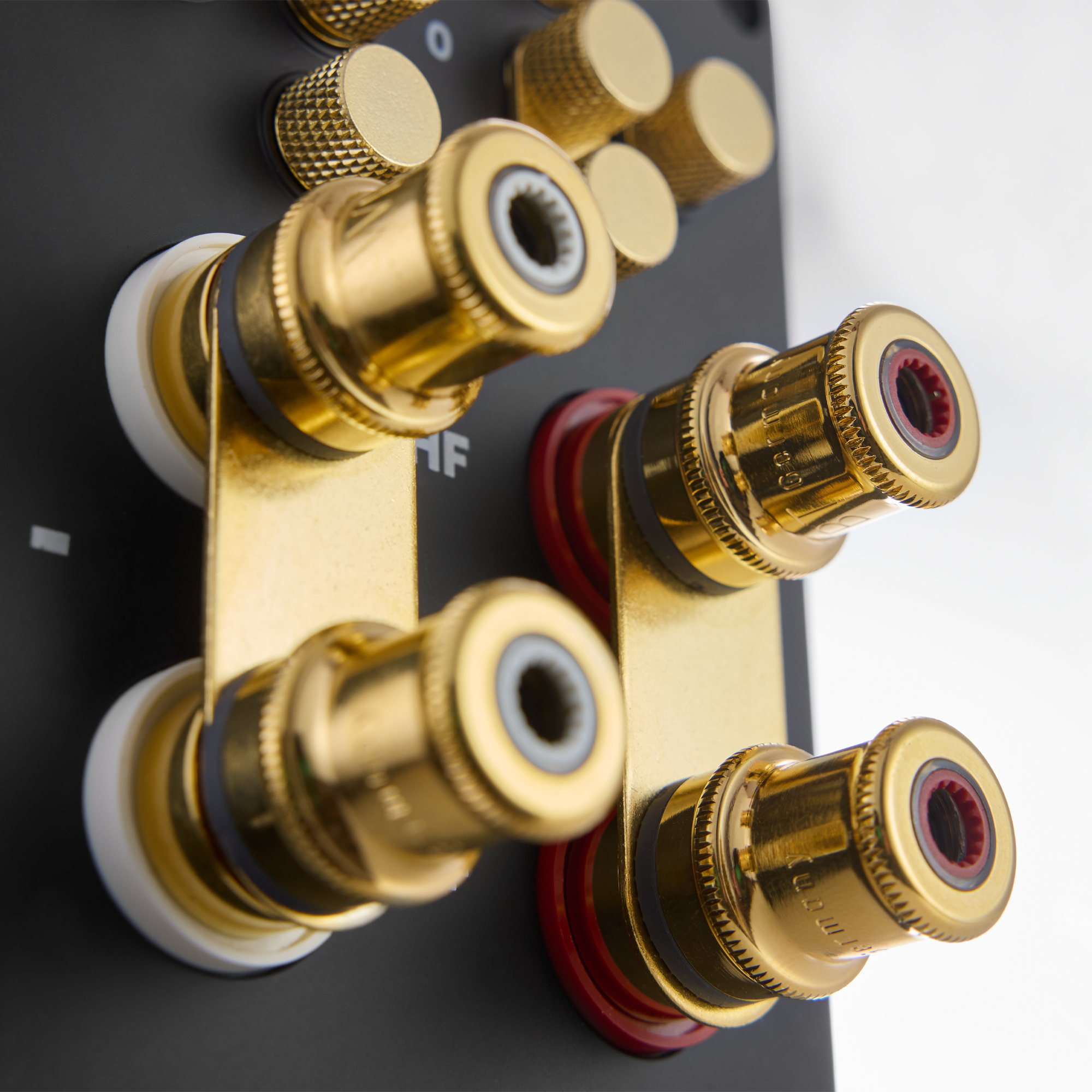

Gold-plated connectors

The newly designed connection terminal of the Reference 5 GS Edition is equipped with gold-plated WBT nextgen™ connection terminals – durable, low-loss, and ideally suited for bi-wiring or bi-amping. High-quality, hard-gold-plated copper bridges are included for classic operation. Thanks to integrated RC technology (Room Compensation), the level of the midrange and tweeters can be adjusted in 1.5 dB increments. This allows you to tailor your speakers precisely to your room acoustics and listening preferences.

The highlights at a glance

The Reference 5 GS is a statement of the highest sound quality and German engineering. Equipped with a newly developed DLC tweeter, a finely tuned BCT midrange driver, and two powerful woofers with bass guides, this floorstanding loudspeaker performs at the highest level—dynamic, precise, and emotional. The WBT nextgen™ connection terminal with RC technology allows for flexible and individual adjustment, while the elaborately milled round cabinet ensures outstanding acoustic properties. Whether you are a music lover, purist, or high-end fan, the Reference 5 GS impresses with state-of-the-art technology, uncompromising workmanship, and a timeless look.

Made with passion and precision

The Reference 5 GS Edition stands for uncompromising high-end sound – powerful, precise, and full of emotion. It combines state-of-the-art technology with perfect fine-tuning and a timeless, luxurious presence. For everyone who wants to not only hear music, but feel it. A statement of sophistication, control, and genuine sound culture.
